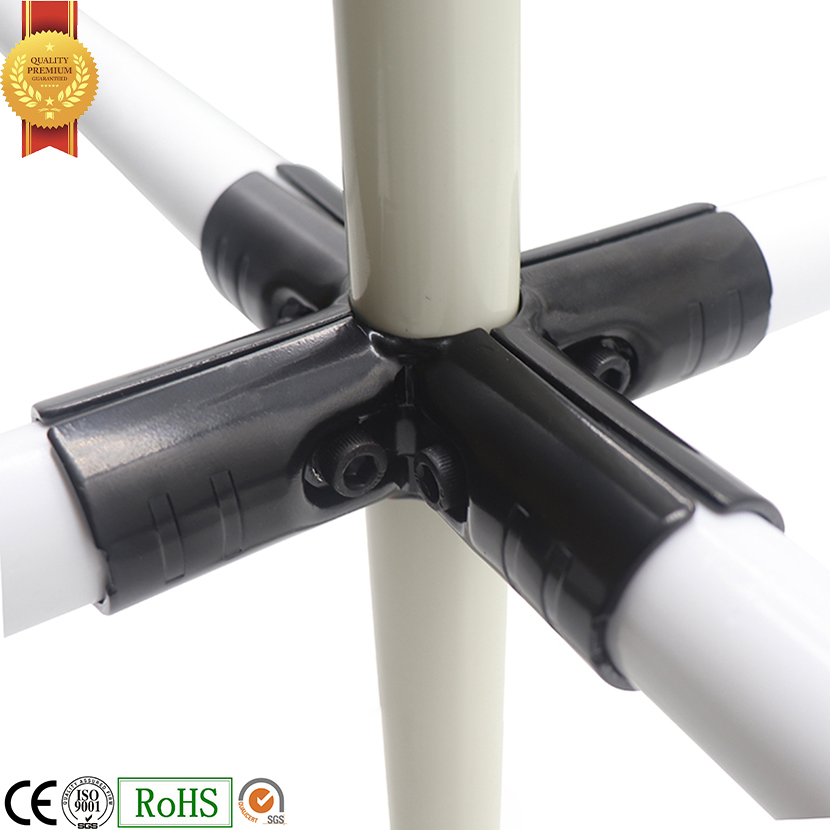

YS-5 black 5 way cross metal joint set with striations and pre-drilled reinforcement holes
$0.01 - $0.03/Bag
1 Bag(Min. Order)
WHAT THE SPECIFICATION OF PRODUCT?
| Model# | YS-3 |
| Product name: | Black Steel Lean pipe connector |
| Connection | 4 Way Cross Joint Set |
| Material: | Hot rolled steel (SPHC) |
| Compatible pipe systems | Compatible with 28 mm pipes |
| Thickness: | 2.3 or 2.5mm(Full size) |
| surface treatment: | Black electrophoresis, blue zinc, nickel plated, chromeplate |
| Manufacturing technique | Stamping molding - grind deburring - Product electrophoresis - packaging |
| Metal clamp application: | Widely used forworkbench(fixed or mobile), workstations, turnover vehicles, rack, storage shelves, display stand and Lean lines, production lines, LCIA system, lean manufacturing line, trolley, storage, auto system |
| RoHS certification | Yes |
| Recyclable | Yes |
| None compatible pipe systems | Trilogiq (28.6 mm) |
| Frequency of use | Very high |
| Reusable | Yes |
| Reusable parts | All |
| Electric conductivity (ESD) | No |
| Steel hardness (HRB) | 68-75 HRB |
| Finish | Glossy |
| UV resistance | High |
| System operational temperature | -148°F to 572°F (-100°C to 300°C) |
| Steel treatment | Black cathodic electrodeposition (Ecoating) |
| Manufacturing technique | Stamping and deburring |
